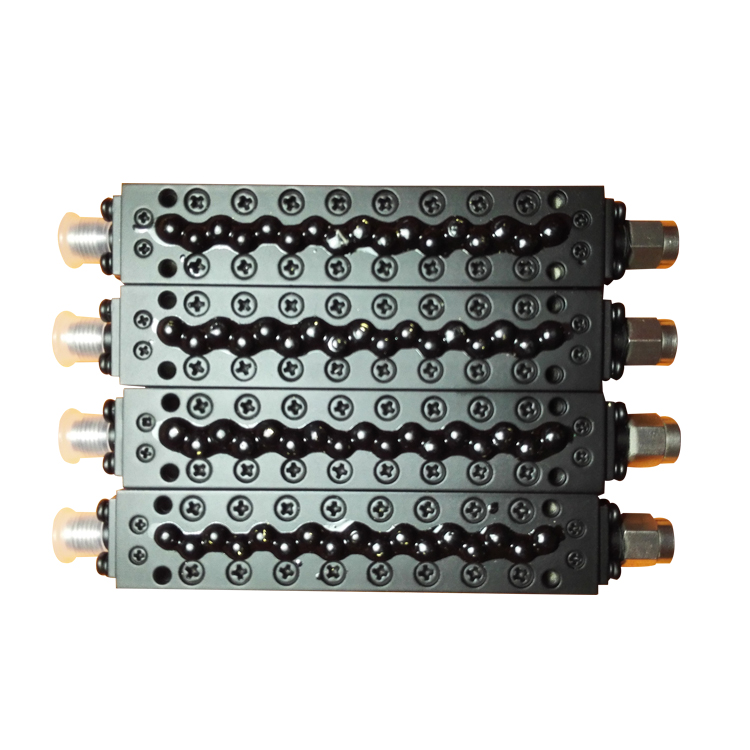

Lowpass Filter

Skylink microwave provide lowpass filters, covering frequency range from 0.1GHz to 55GHz and customized design over 55GHz is reachable.
The typical application of bandpass filters are test&measurement, satcom, military and industry.







Model Start
(MHz)
Stop
(MHz)
Bandpass IL
(dB)
VSWR Rejection
(dB)
Connector Size
(mm)
SL-LPF-DCM1450-45 DC 1450 ≤1.5 ≤1.5 45dB@1.7-18GHz SMA-F 46*30*10
SL-LPF-DCM8000-40 DC 8000 ≤2 ≤2 40dB@9-24GHz SMA-F 55*15*13

* The product information in this data is only for reference.
* All information is subject to change without notice.
* Please contact our sales staff before considering or placing any orders.
* Please contact factory if you didn'f find the right solution for your application, customizations are available.
